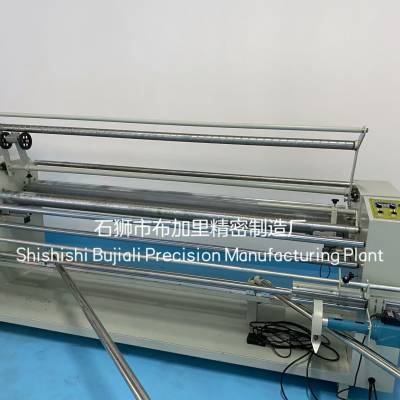

规格参数:

门幅：1.7米（另有2.05米、2.4米、2.8米、3.2米可选）

卷布直径：300毫米,也可定制400毫米

最快卷布速度：80米/分钟

卷布电机功率：0.75千瓦

小刀片电机功率：0.12千瓦

电源电压：220V/380V可选

外形尺寸：2.5米×0.85米×1.3米

配备详情

1、采用电子对边装置，使布匹等材料卷取后，布边缘整齐一致，且可根据布料种类控制卷布的松紧度。

2、配有米表自动控制装置，可***计量布米长或码长，并自动控制。

3、卷布速度可无级调节，并可正反转控制及点动自动切换，生产效***，节省人力，单人操作方便。

4、斜纹卷布可在20度至70度之间调节。

5、采用不锈钢布桶，***，避免沾污布料。

该机可与CJ-170型切捆条机配套使用，可直接进行布料的切条加工。

Specification parameters:

Door width: 1.7 meters (optional for 2.05 meters, 2.4 meters, 2.8 meters, and 3.2 meters)

Roll cloth diameter: 300mm, can also be customized with 400mm

Fastest rolling speed: 80 meters/minute

Cloth rolling motor power: 0.75 kW

Small blade motor power: 0.12 kW

Power supply voltage: 220V/380V optional

Boundary dimension: 2.5 meters × 0.85 meters × 1.3 meters

Equipment details

1. Using an electronic edge alignment device, the edges of the fabric and other materials are neatly and uniformly rolled, and the tightness of the rolled fabric can be controlled according to the type of fabric.

2. Equipped with an automatic meter control device, it can accurately measure the length of cloth meters or yards, and automatically control them.

3. The rolling speed of the fabric can be adjusted steplessly, and can be controlled in both forward and reverse directions, as well as automatically switched between jogs, resulting in high production efficiency, labor saving, and convenient operation by one person.

4. Twill rolled fabric can be adjusted between 20 degrees and 70 degrees.

5. Using stainless steel cloth barrels, never rust and avoid staining the fabric.

This machine can be used in conjunction with the CJ-170 type cutting and bundling machine, and can directly perform fabric cutting and processing.
